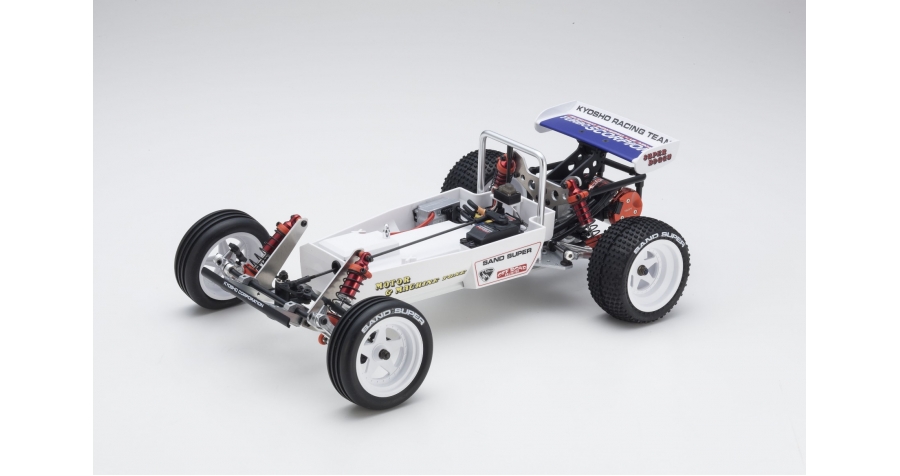

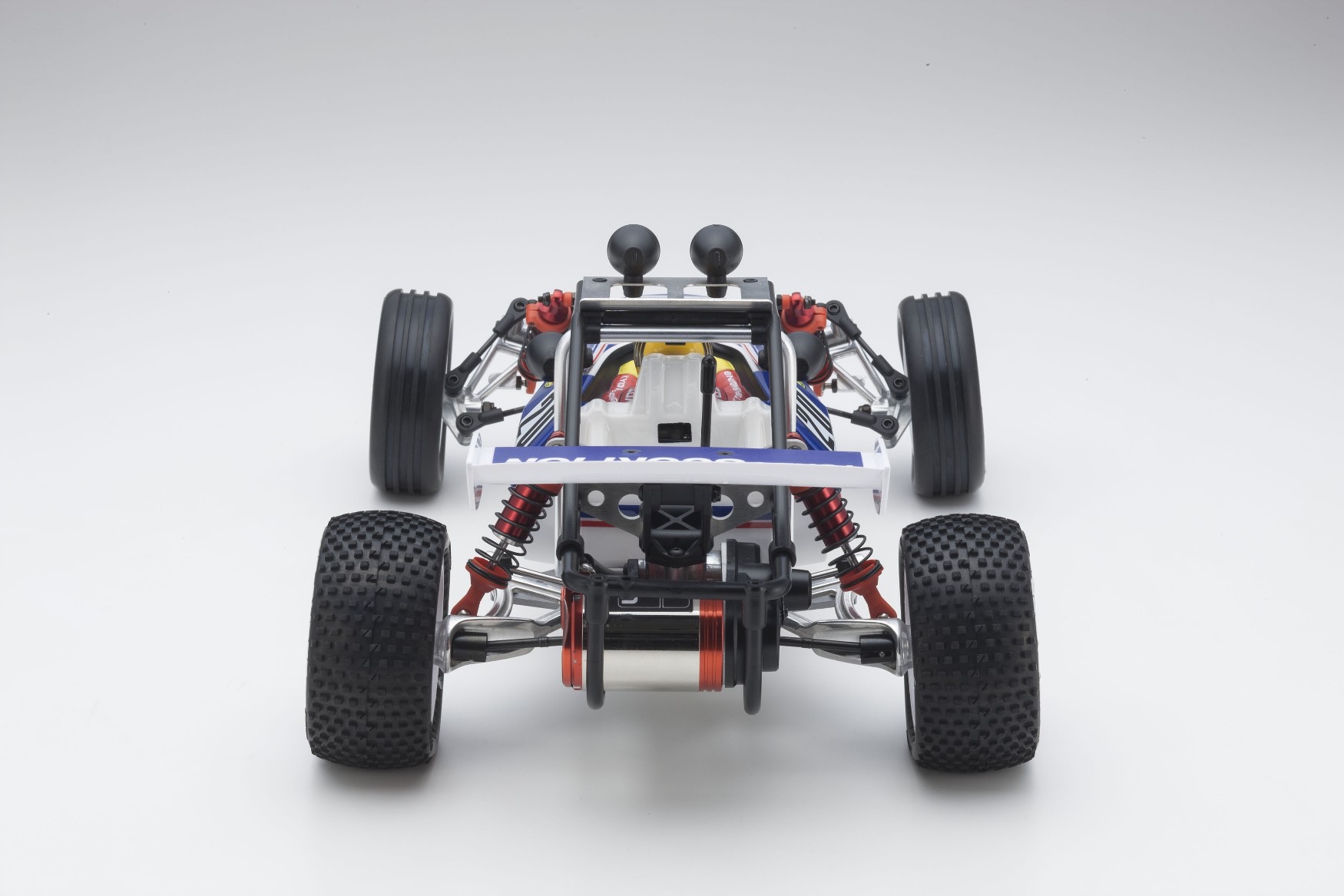

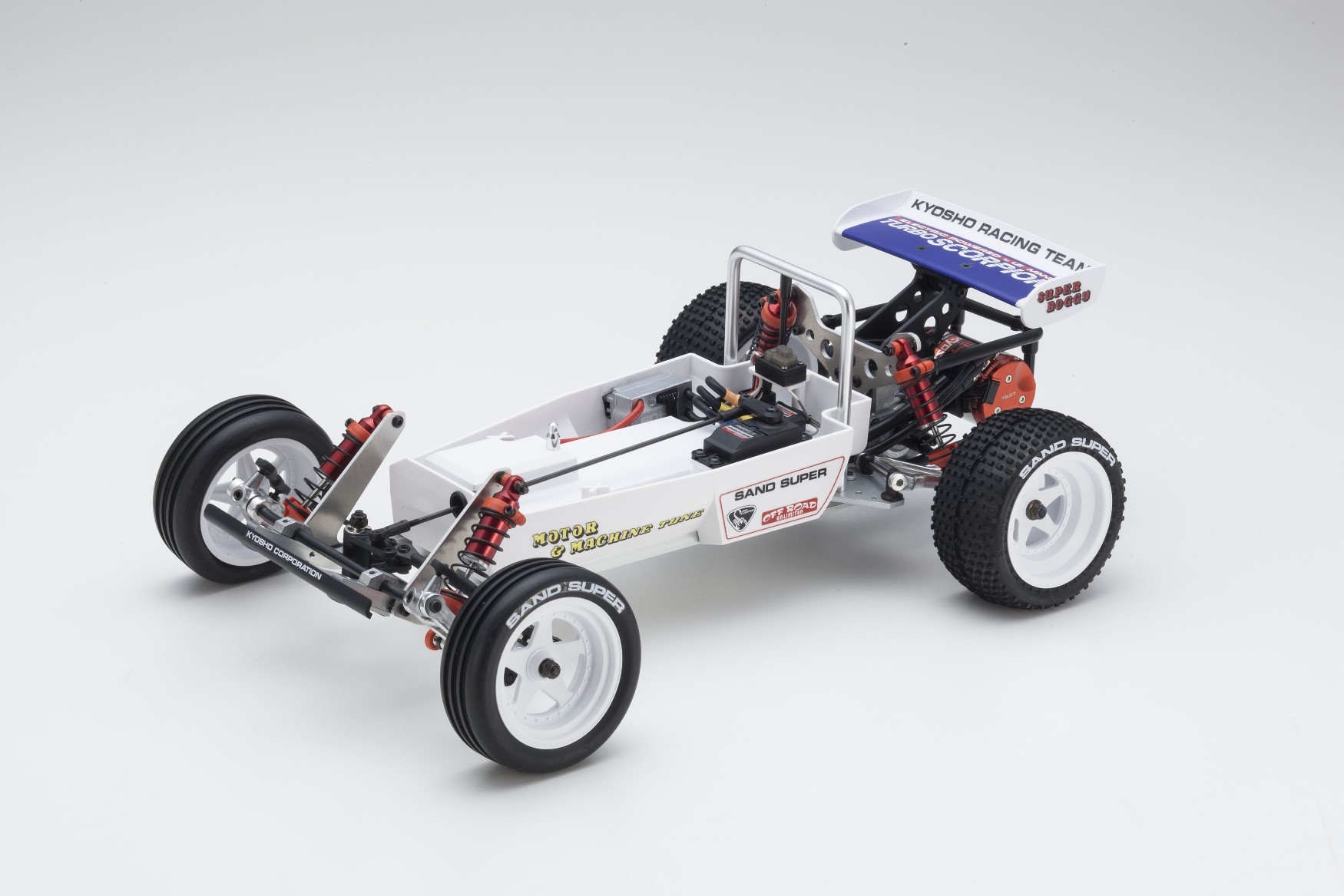

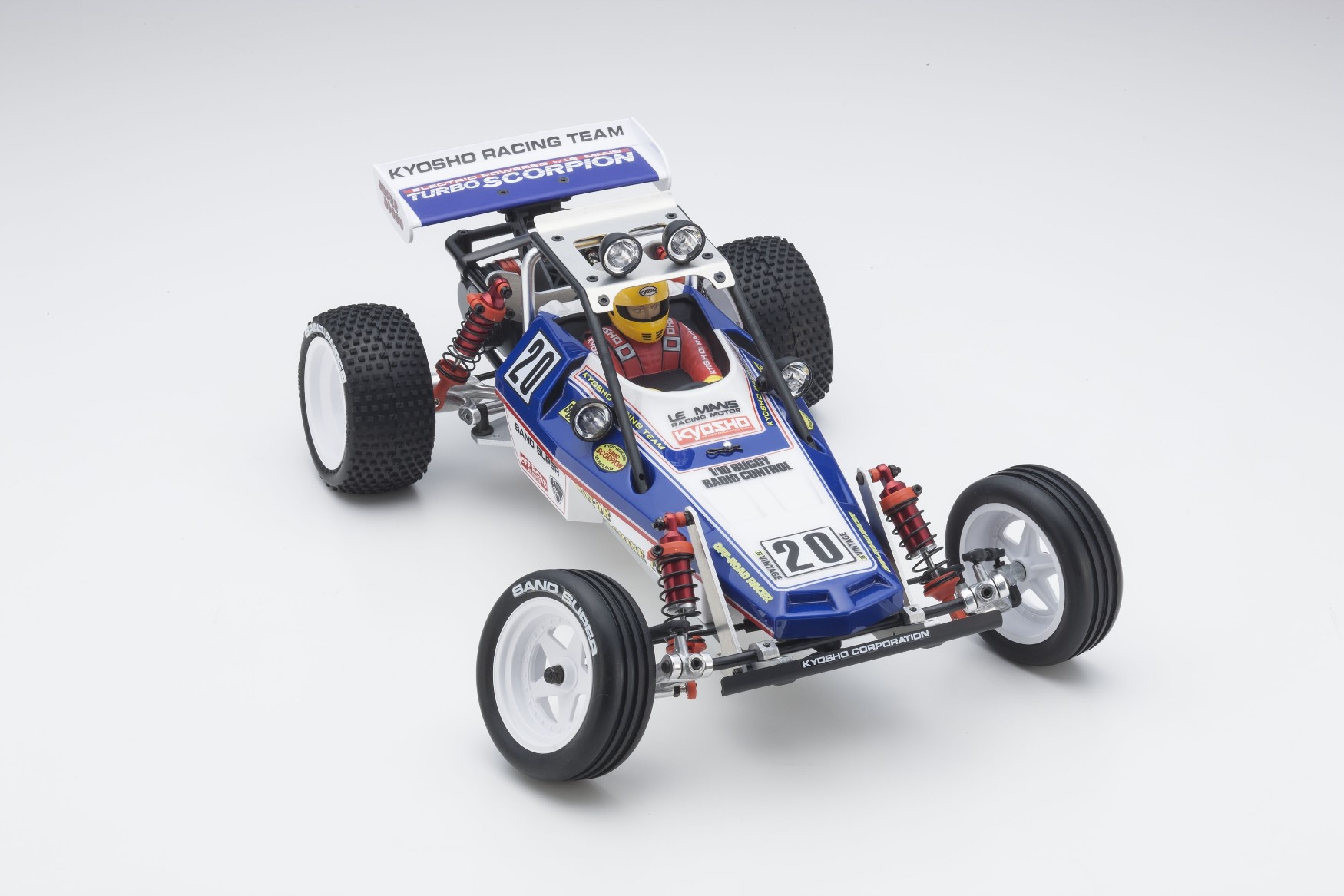

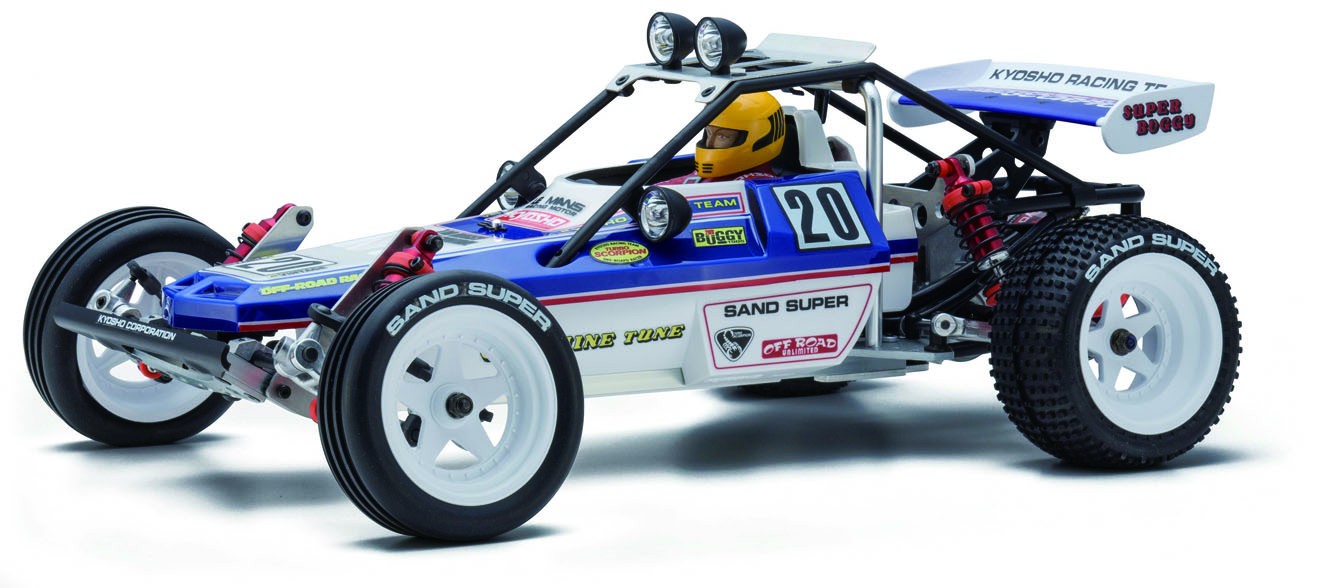

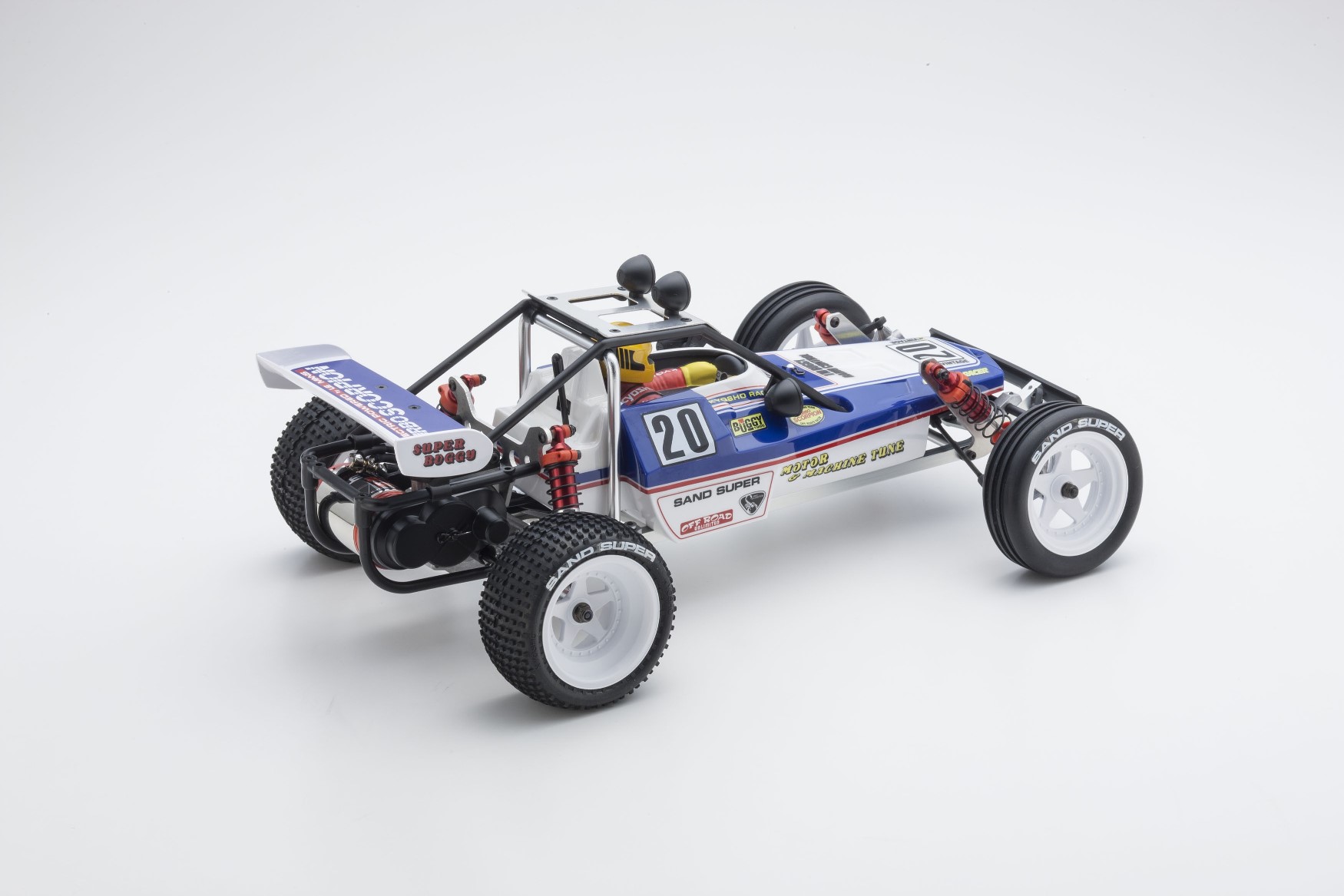

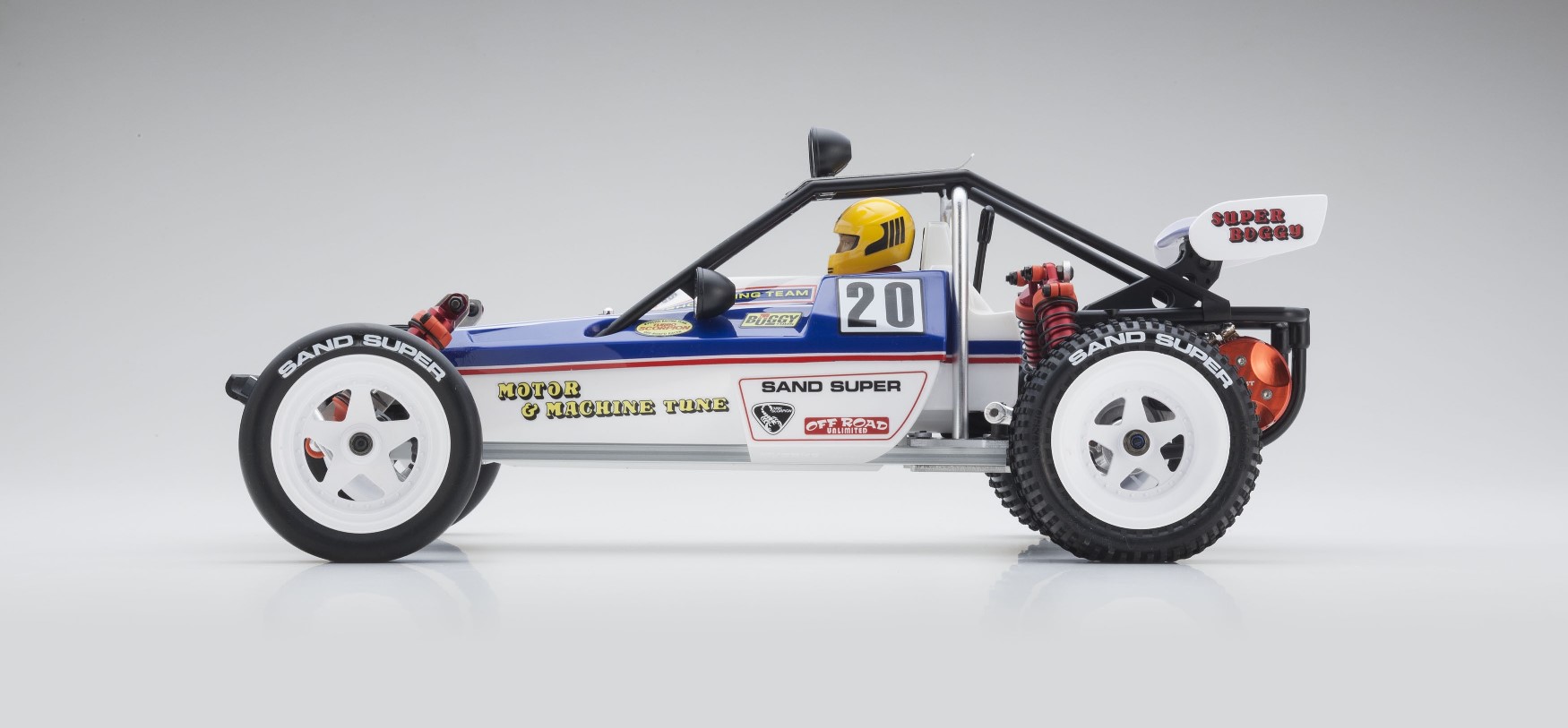

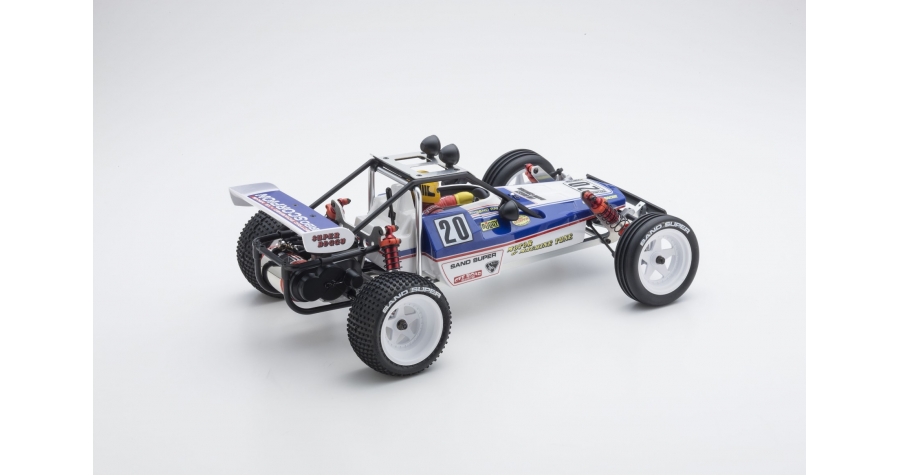

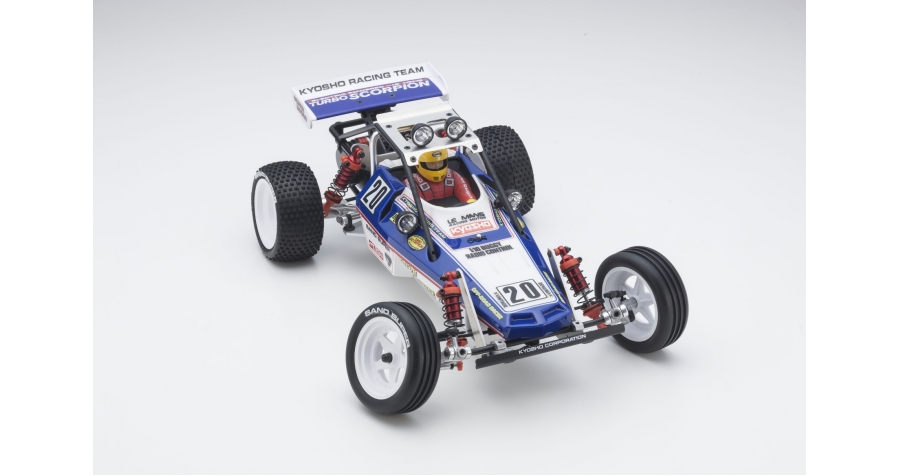

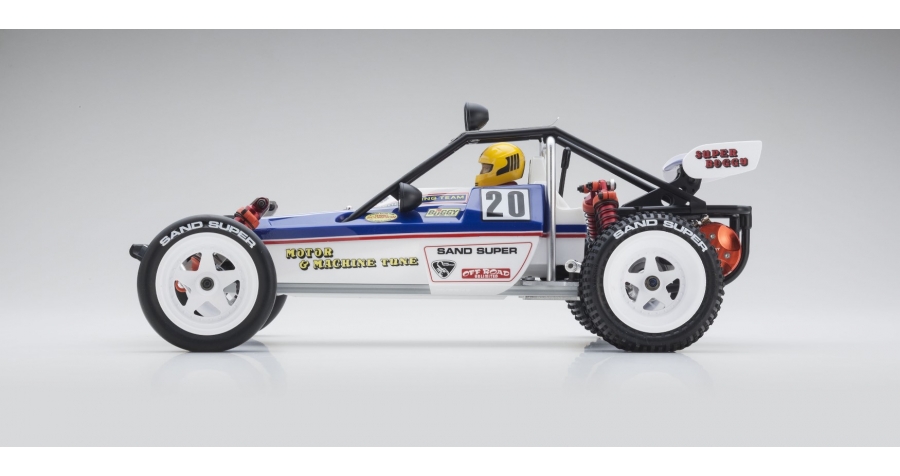

TURBO SCORPION 1:10 2WD KIT *LEGENDARY SERIES* 30616

Prev 18 of 21 Next

Price:
In stock

Product ID: KC30616



More performance and style with improvements to each key component,
this machine is more than just a reproduction!

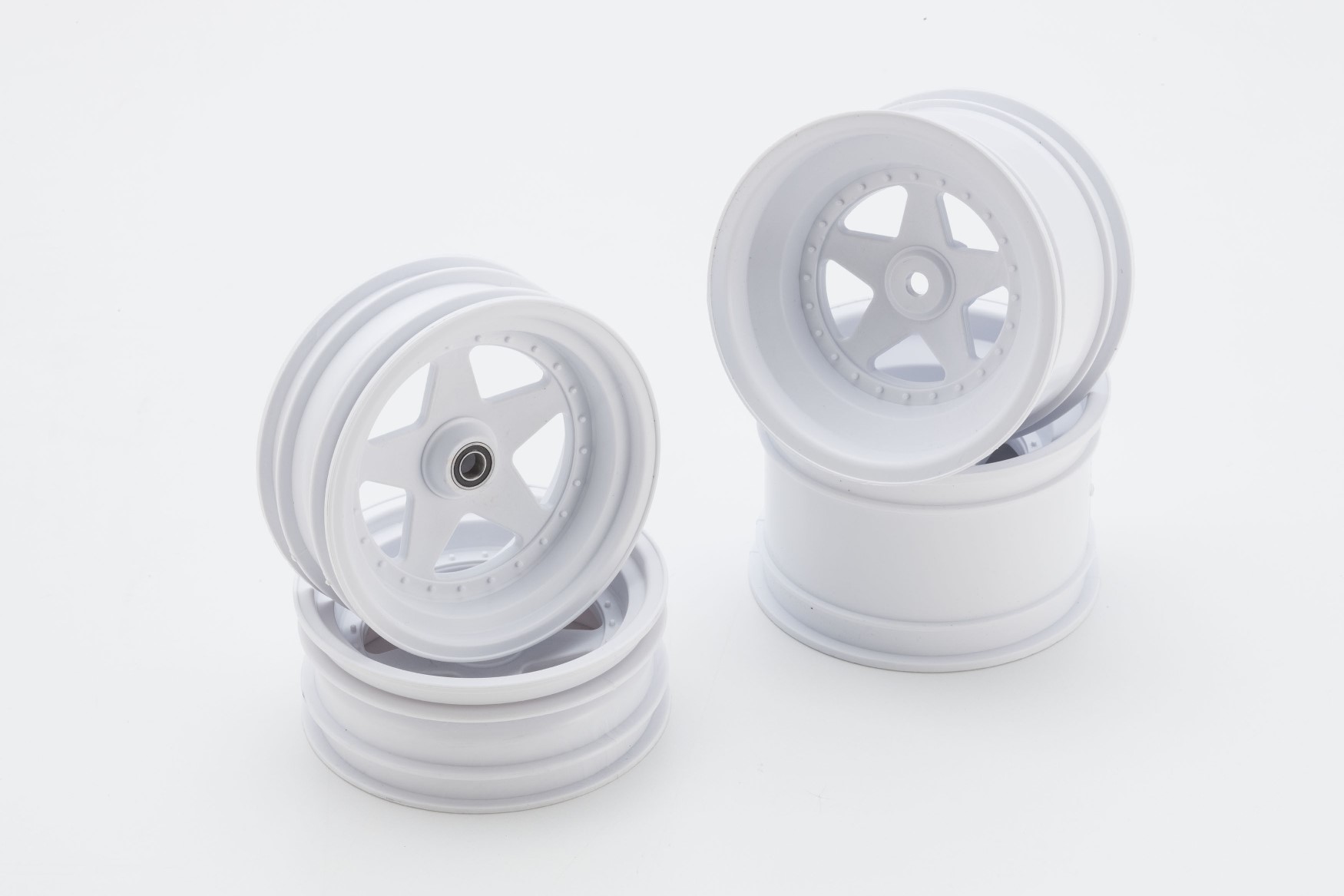

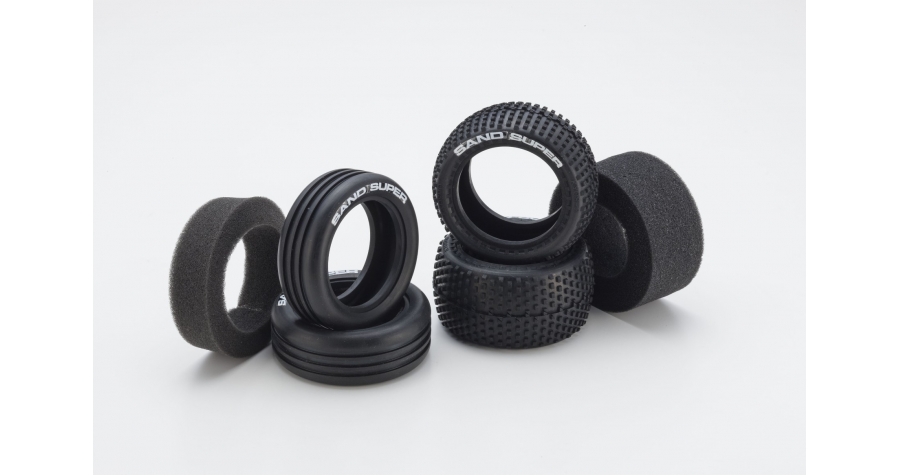

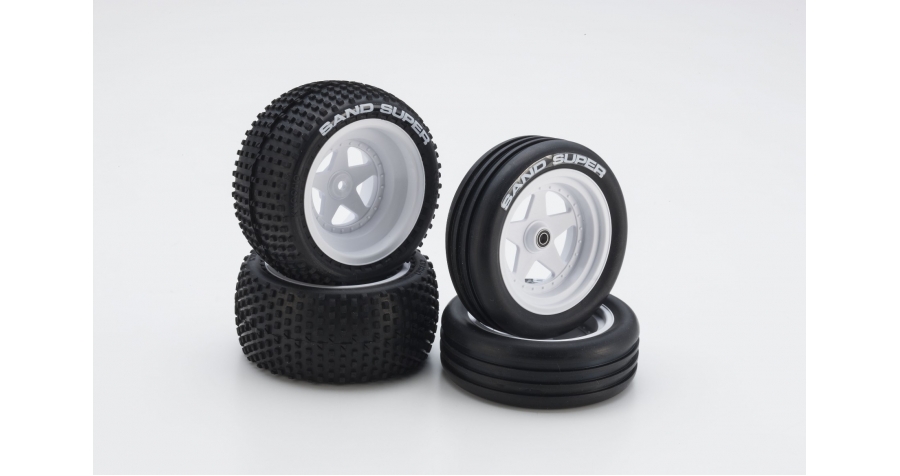

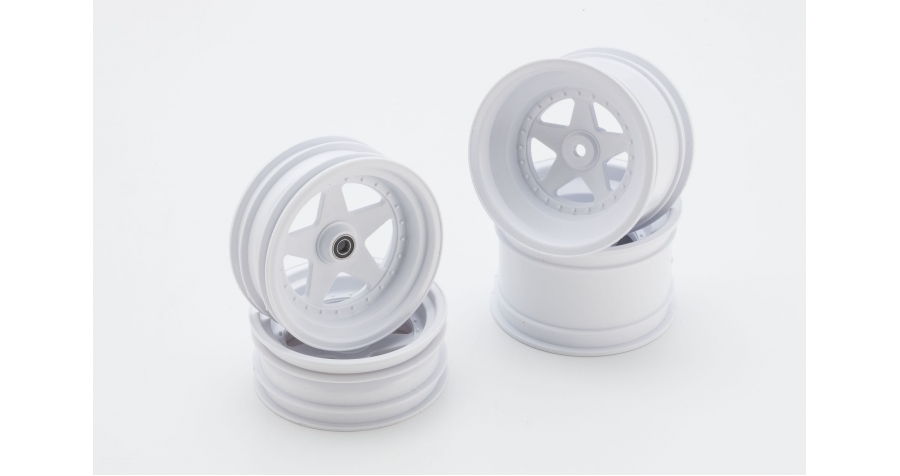

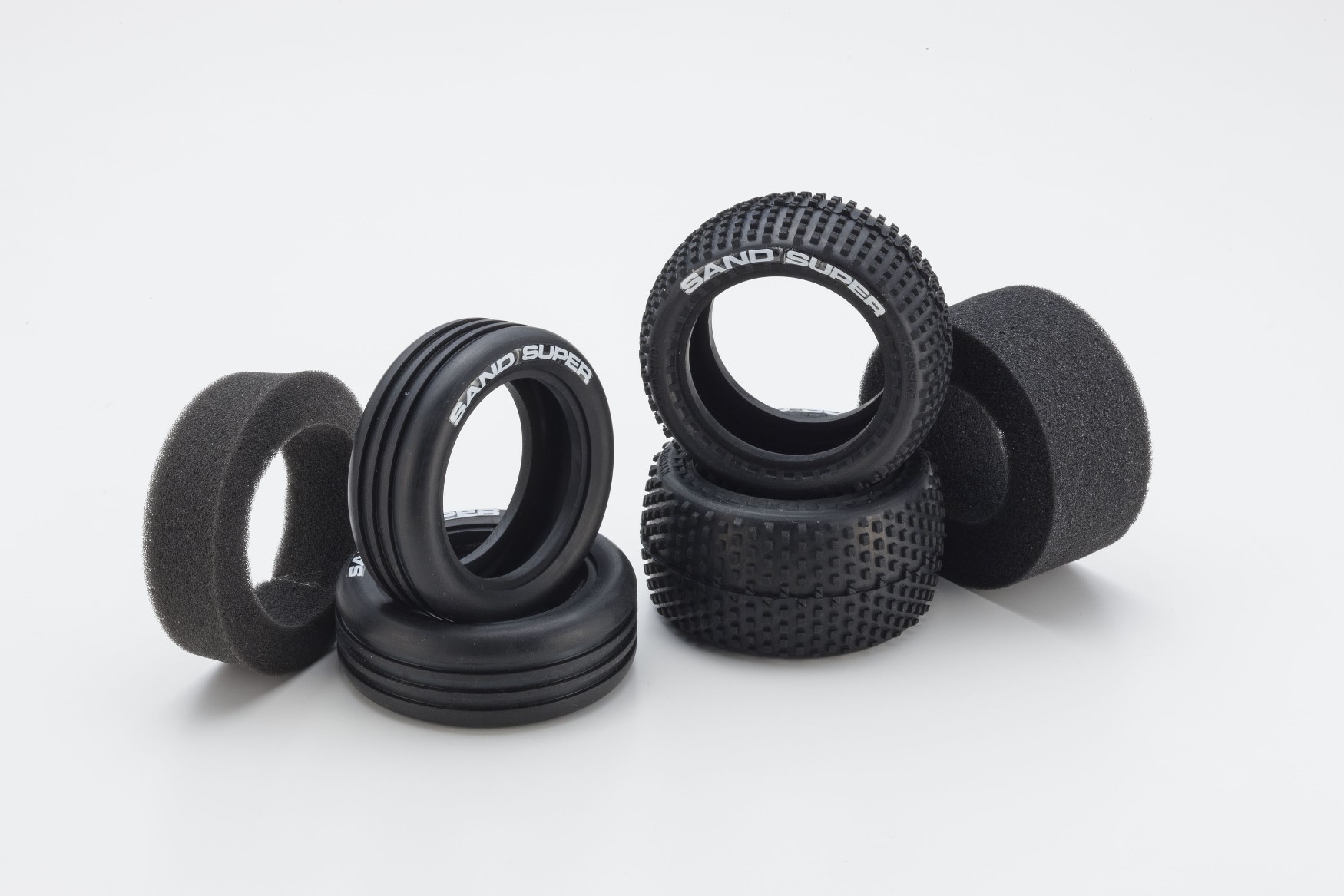

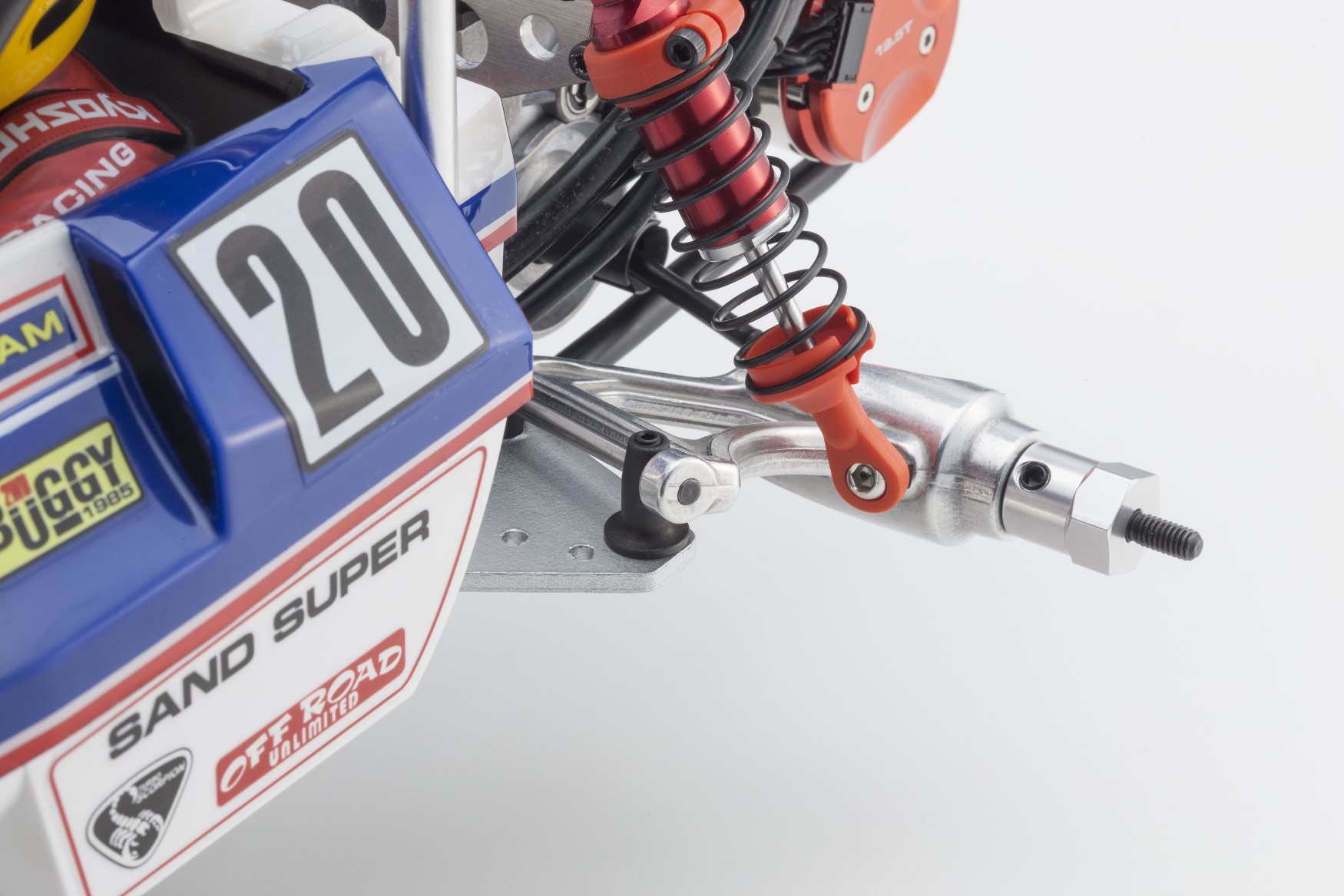

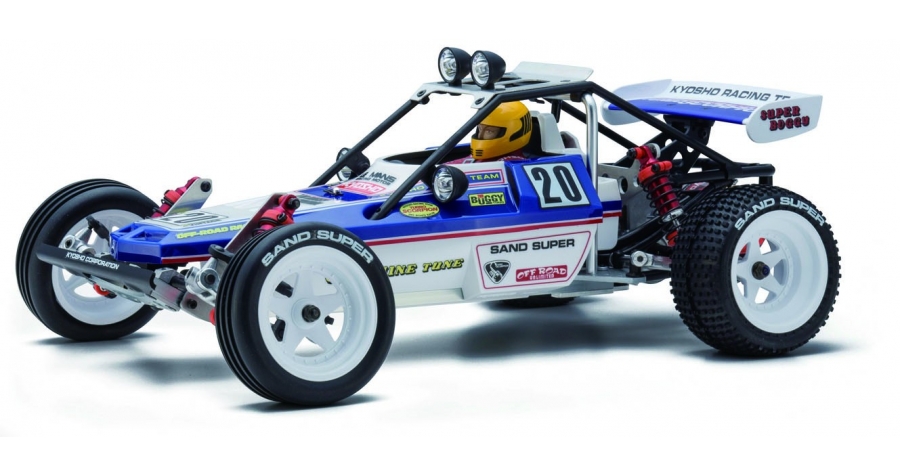

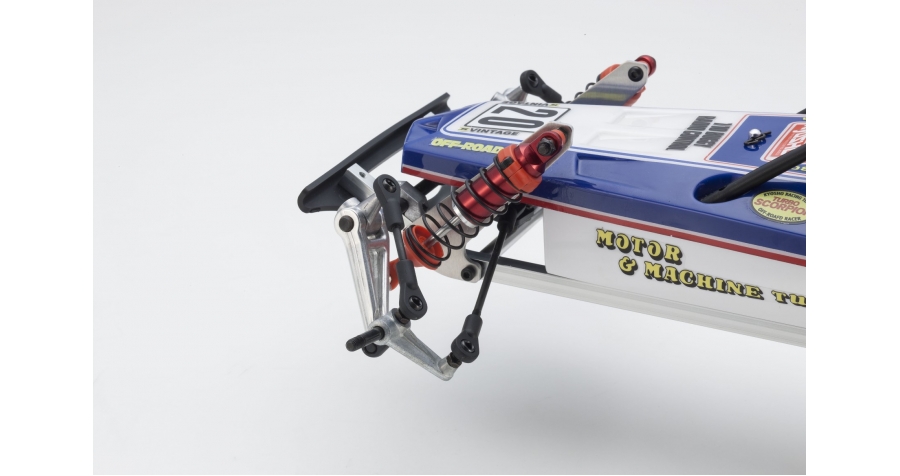

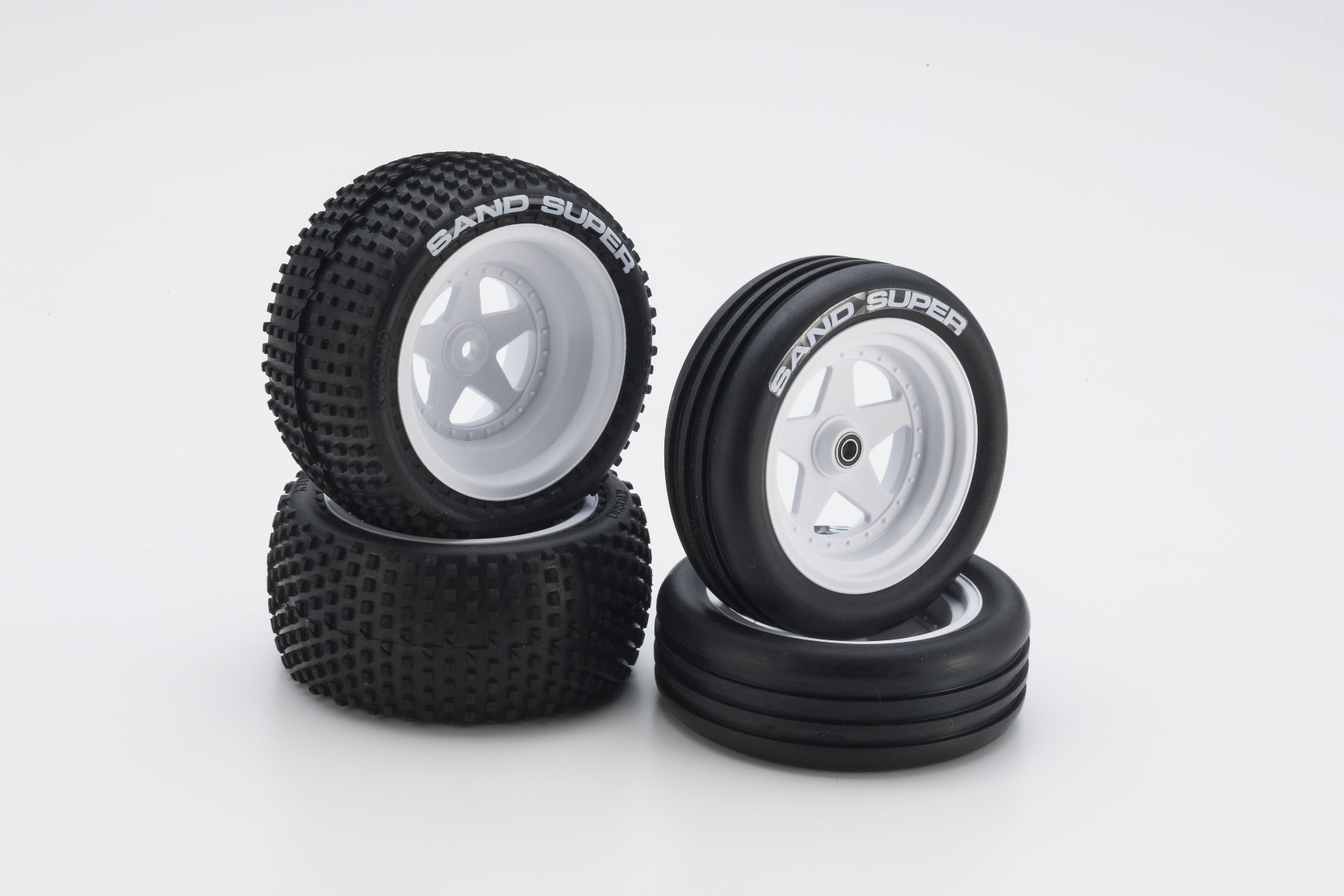

As the 5th model to make its return as part of the vintage series, the ever-popular Scorpion released in 1982 was relaunched 2 years ago and has undergone a detailed overhaul to match modern performance with retro styling. The new Turbo Scorpion remains true to the essence of the unique Scorpion design throughout, but features Scorpion-style wheels in the larger 2.2 inch modern standard wheels for improved off-road performance. In addition, 12mm oil shocks based on the Optima deliver rock-solid running stability and excellent damping characteristics that work in combination with high-grip front and rear tires with a 20mm wider front tread and 10mm longer wheelbase than the original Scorpion to realize improved control and handling performance. With a thorough modernization, the new Turbo Scorpion is ready and willing to accept modern-day power sources and compete on modern race circuits. The standard Turbo Scorpion is a fully optioned chassis configuration and is ready to take the punishment that goes with hard driving.

  • Turbo Scorpion updated to meet the demands of the modern off-road racing scene.

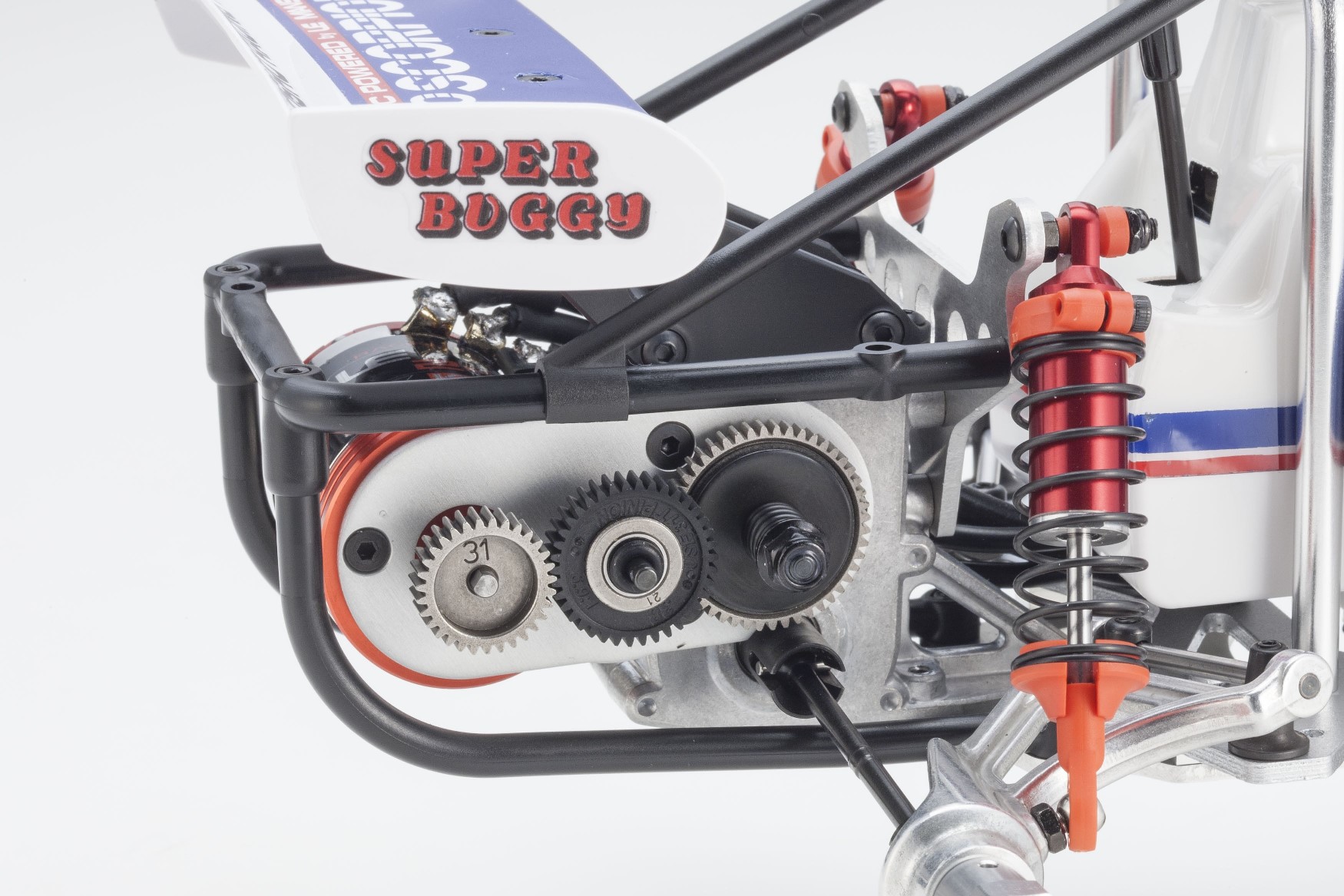

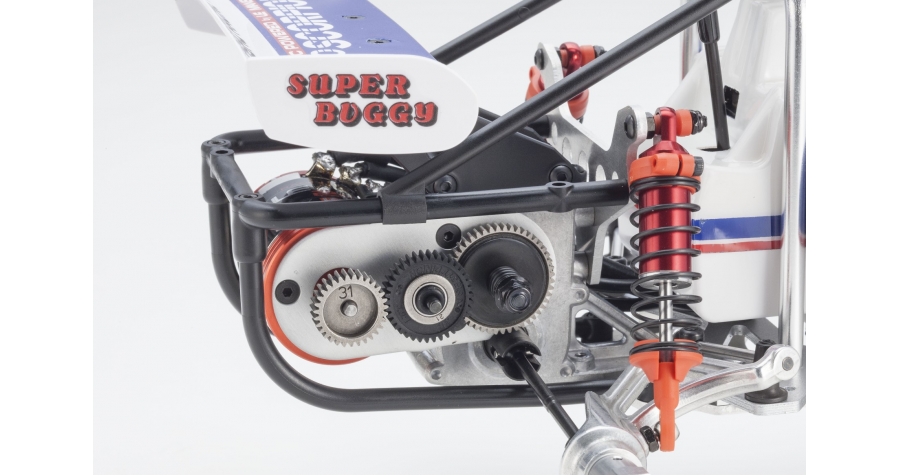

  • Kit includes pre-assembled gearbox and oil shocks.

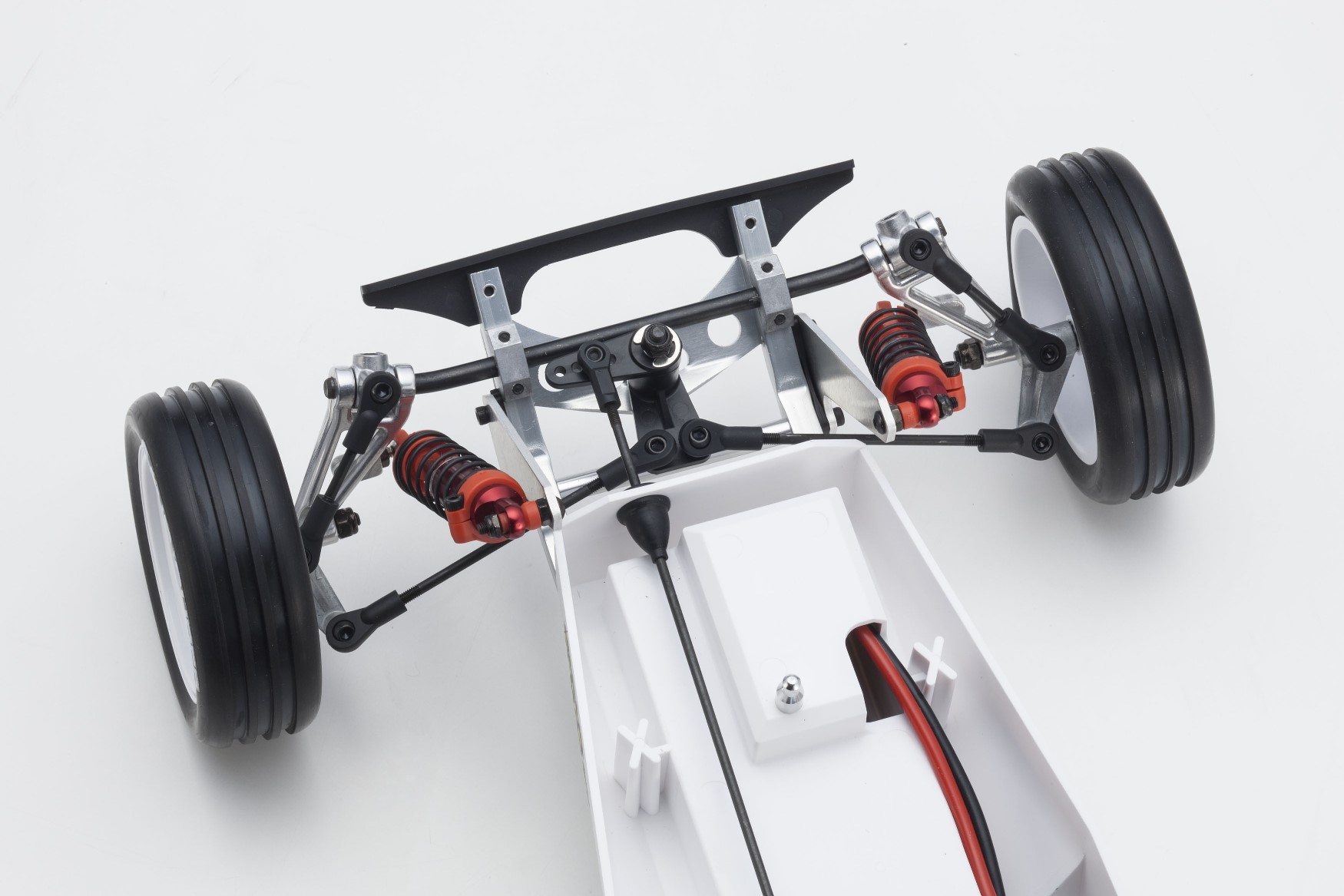

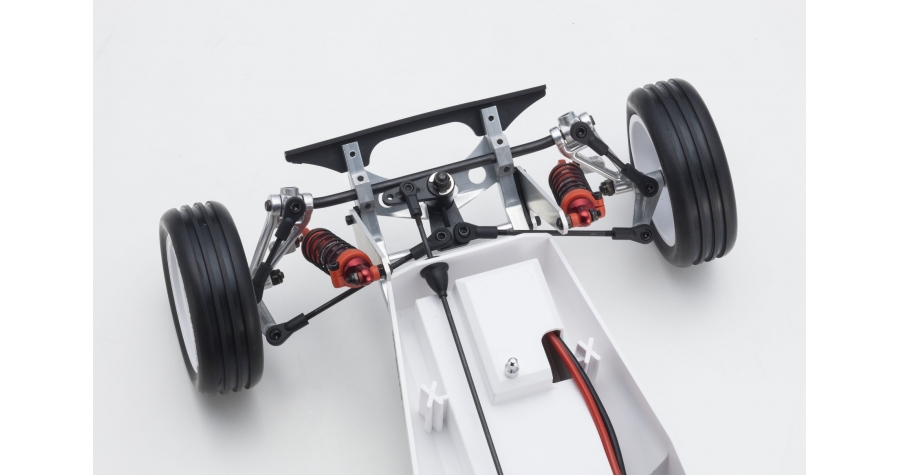

  • Features same racy-style mini bumper as the original.

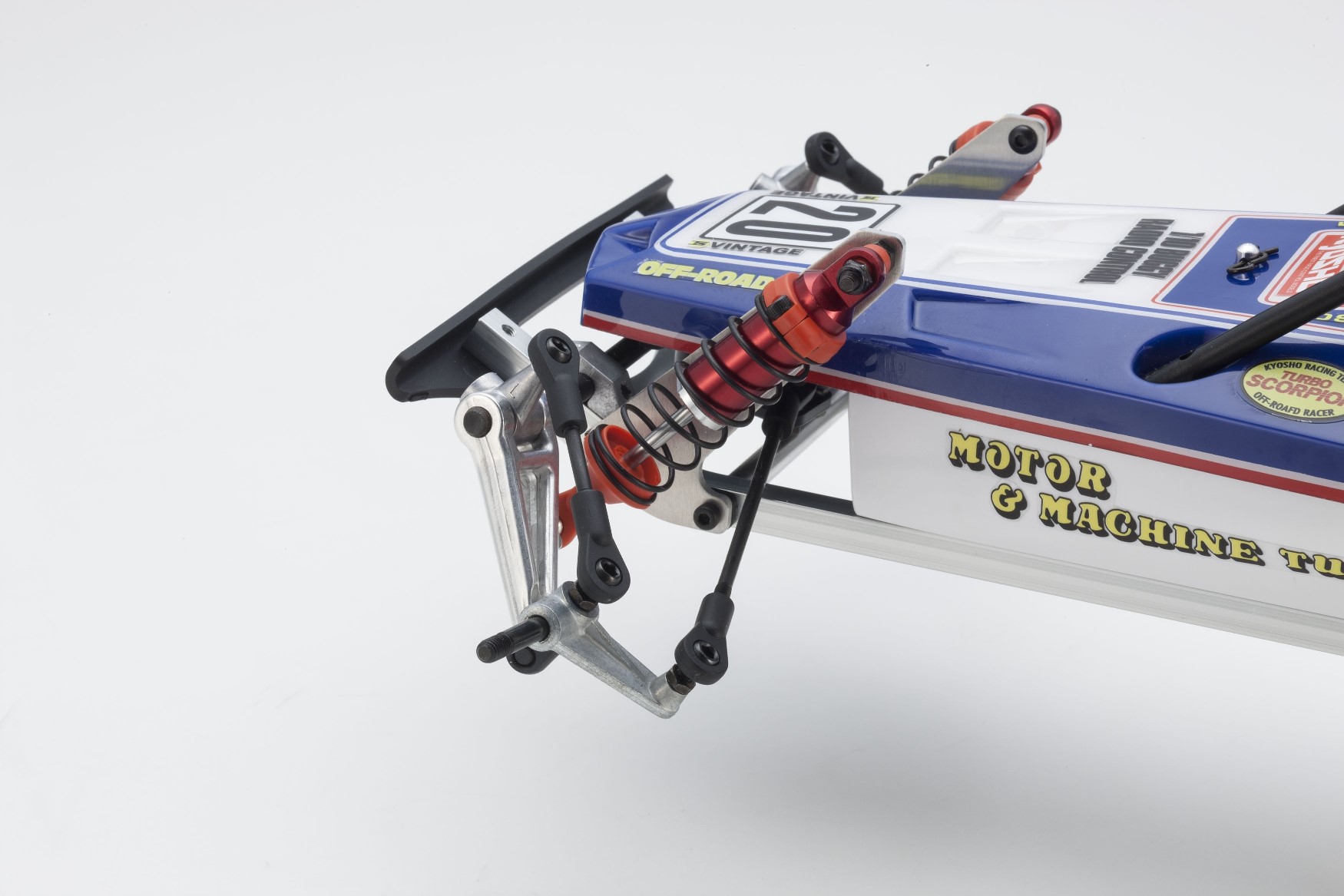

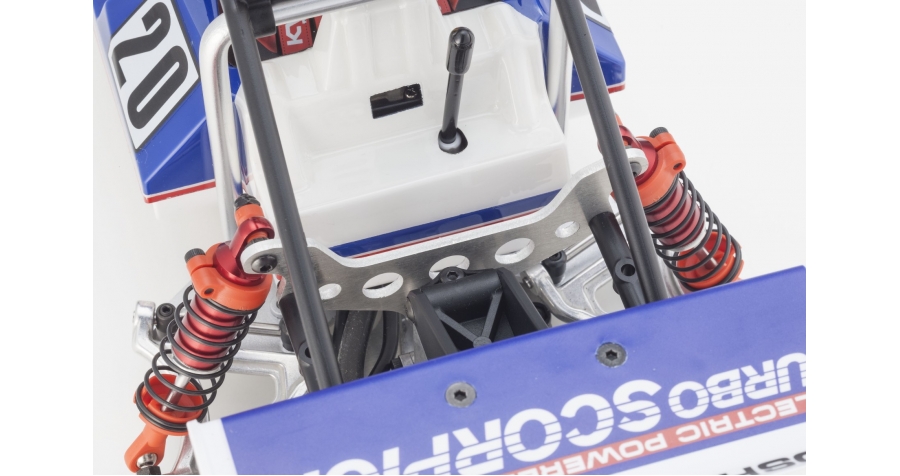

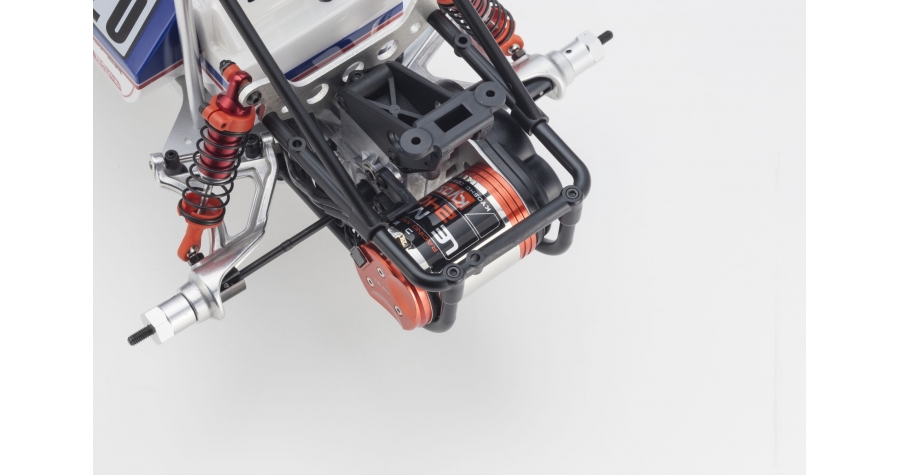

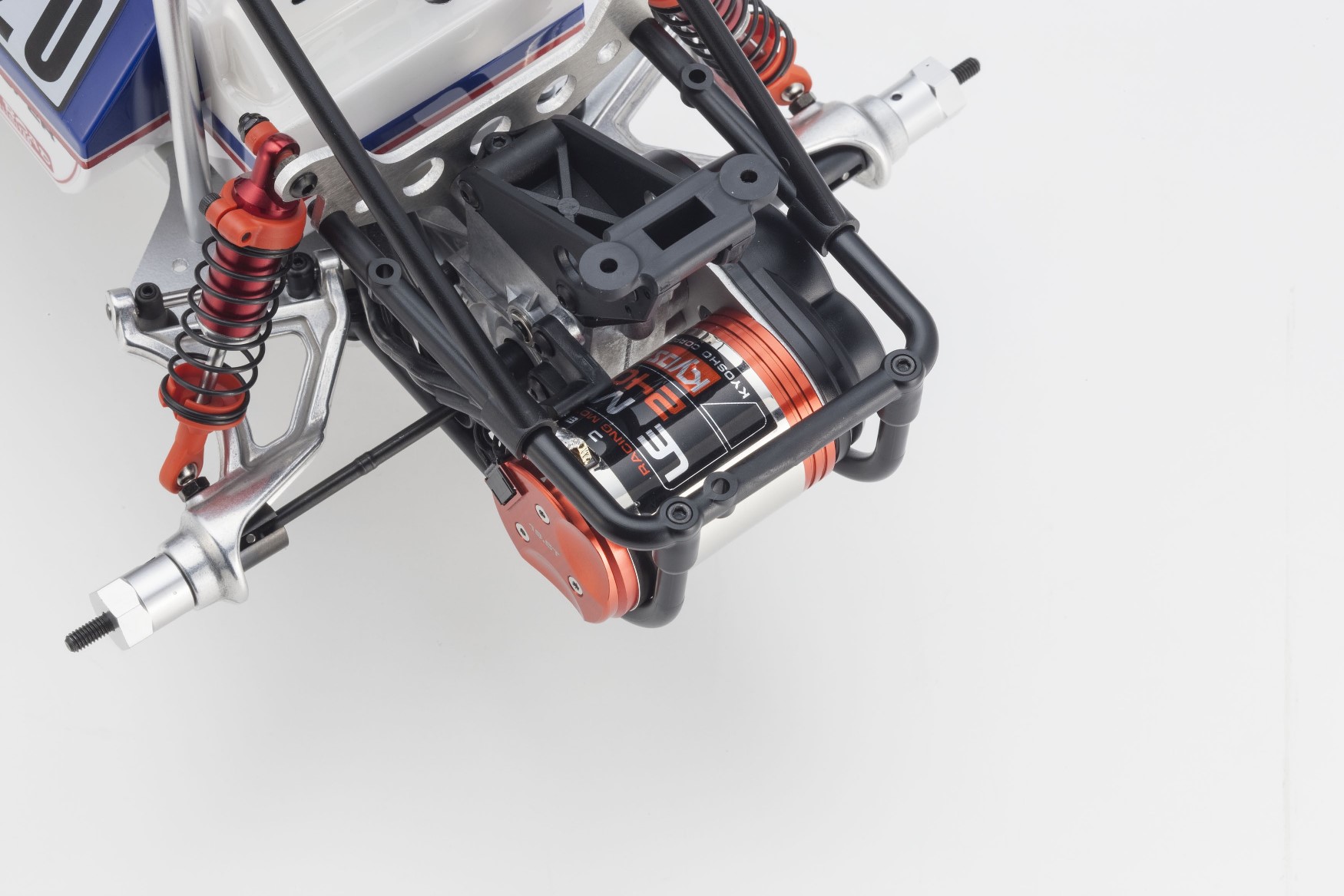

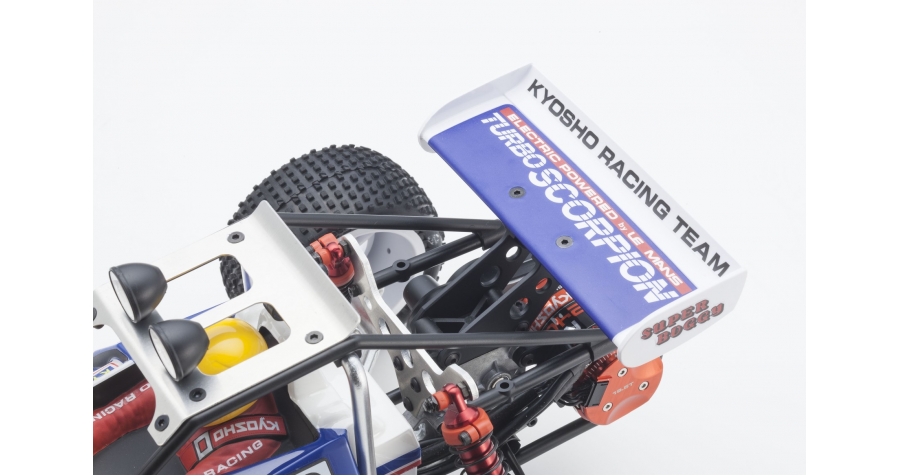

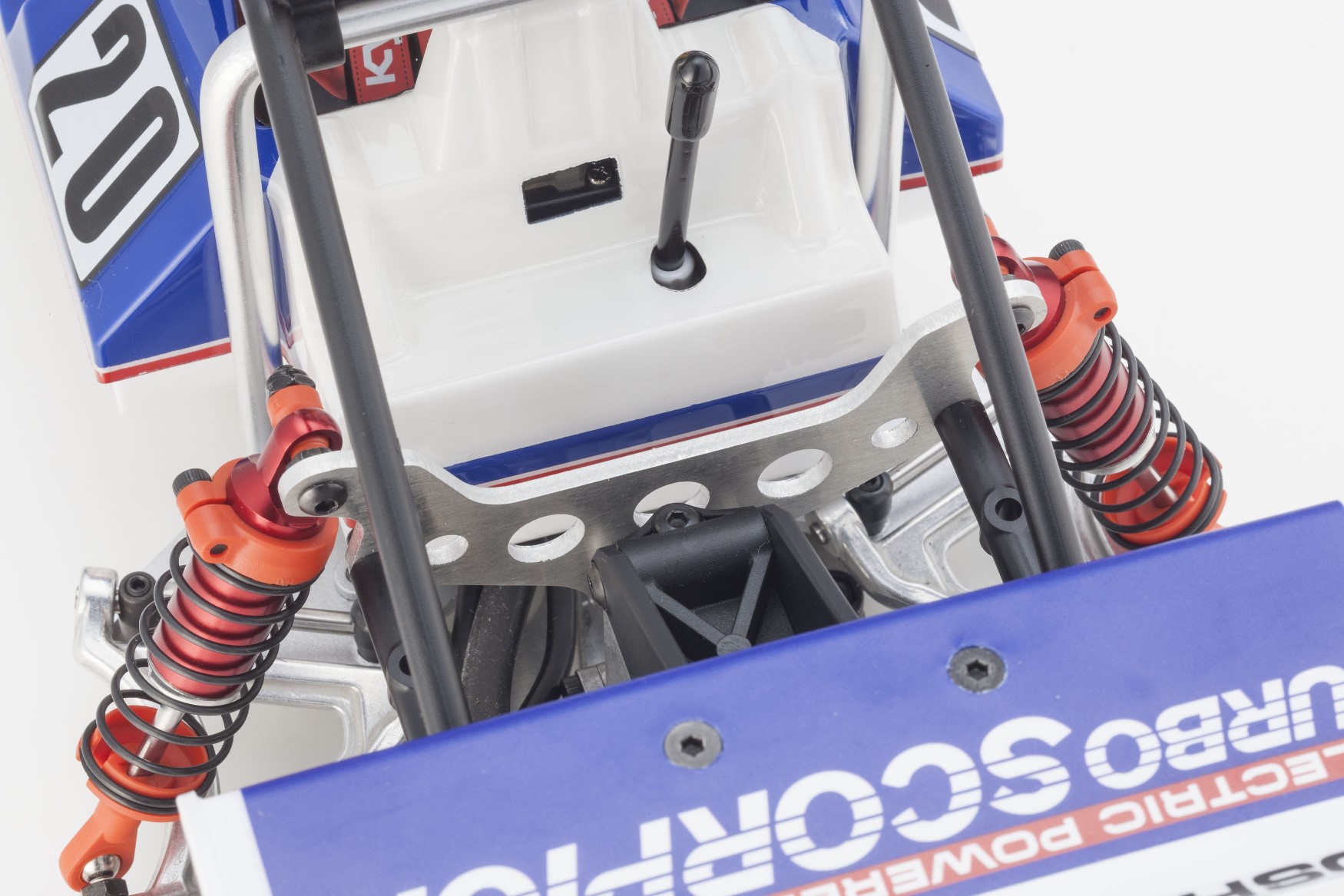

  • Rear section reinforced with Rear Sus Post L, strengthened by added flange.
  • Features accurate recreation of the original loop-mount light buckets. Optional LED lights can be simply bolted on.
  • Screwed surfaces are countersunk for flat finish.
  • Decals included in kit are diecut. Stretch for easy application and beautiful body finish.



Kit Contents:

  • Pre-assembled kit (gear box is pre-assembled)
  • Polycarbonate clear body
  • Decals

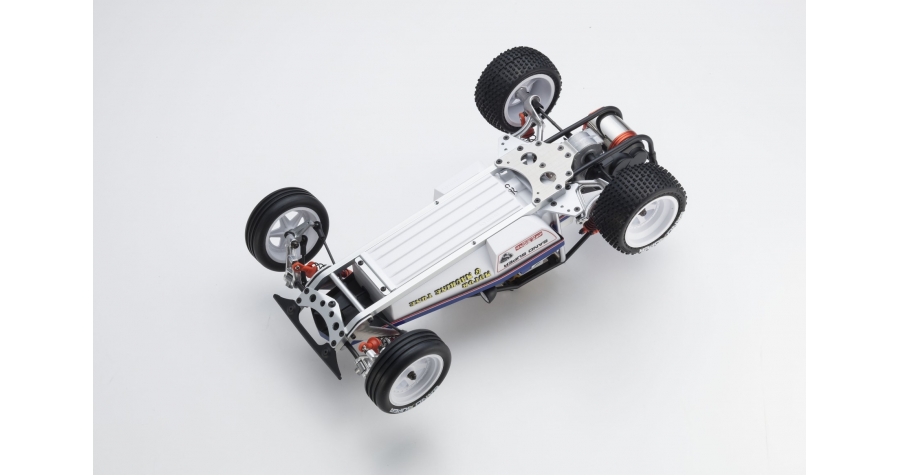

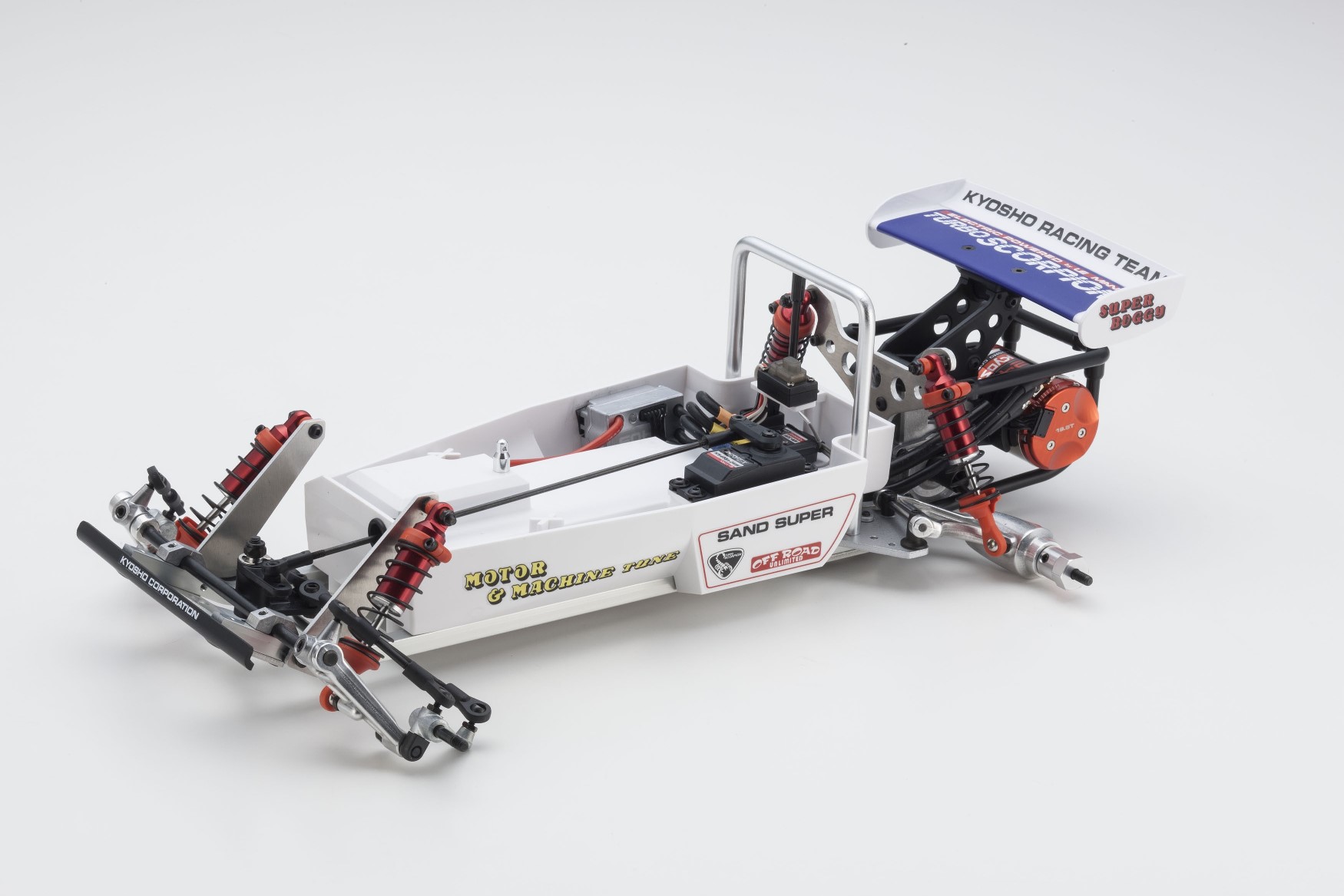

  • Chassis parts
  • L type hexagonal wrench
  • Cross wrench
  • Shock wrench
  • Shock oil
  • Grease



Required for operation:

  • 2ch 1 servo R/C system for cars
  • 540 class motor
  • ESC compatible with motor used

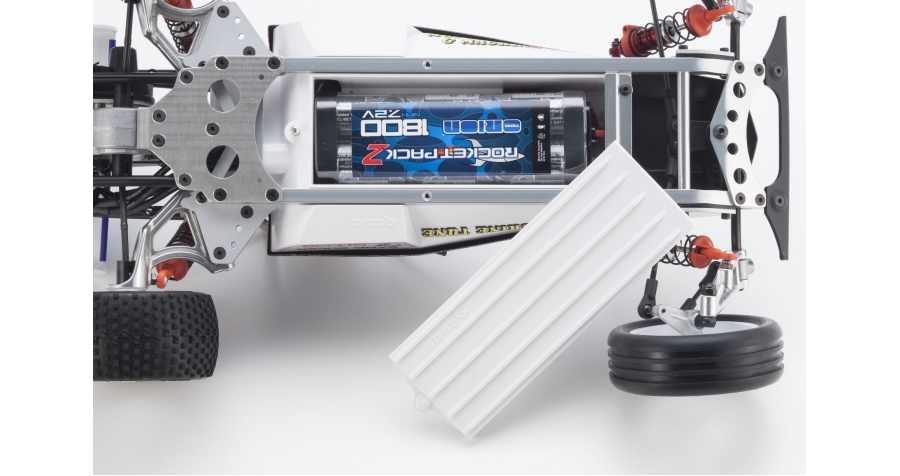

  • Battery for chassis compatible with ESC used
  • Battery charger
  • Paint for polycarbonate body
  • Batteries for transmitter
  • Tools (1.5, 2, 2.5mm hexagonal wrench driver)



Technical data:

  • Length 408mm
  • Width : 256mm
  • Height : 145mm
  • Ground Clearance : 28mm
  • Wheelbase : 273mm
  • Tread (F/R) : 218mm/215mm
  • Tire(F/R) : Φ82×27mm / Φ86×42mm
  • Gear Ratio : 6.9 : 1 / 8.3 : 1 (select from 2-type)
  • Weight : 1,500g (approx.)
  • Motor : 540-type (sold separately)
