Product ID: KP10117

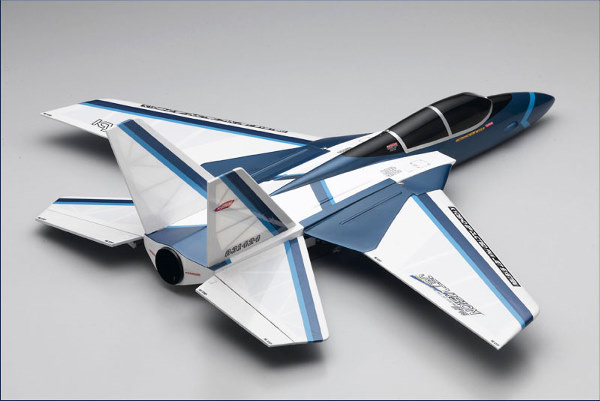

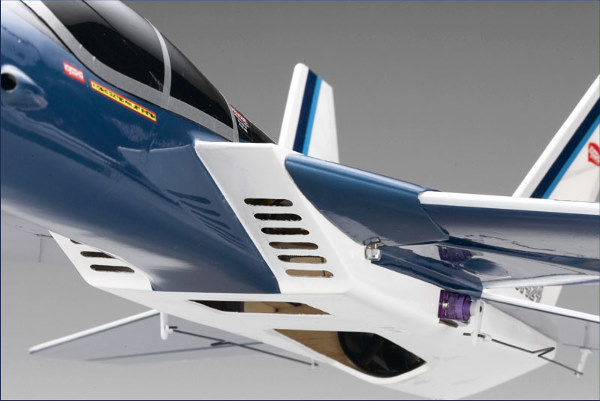

Kyosho's many years of ducted fan airplane design experience combines with the latest brushless motor technology for dynamic electric jet airplane flight. Now a swing-wing adds an entirely new dimension. With control input one servo you can change the main wing's swept back angle during flight from your transmitter and dramatically change the flight characteristics at the same time. Spread the main wings out (to the forward most position) for excellent slow speed control and stability. Or swing the wings in tight for high-speed mode to experience the screaming excitement of jet airplane flight. The FRP fuselage combines with balsa main and tail wings in a lightweight structure with a stunning color finish. Depending on your skill level, the jet also has nimble stunt capability. Only this airplane provides twice the action and excitement.

• Swing the wings out for excellent low speed stability, or fly with the wings swept back for high speed performance.
• Lightweight and simple structure uses one servo to control the swing angle of the main wing.
• Main components such as the strong FRP fuselage, balsa main and tail wings are pre-built in this factory-assembled kit.
• Mixing radio system realizes precise control inputs and angle of the swing-wing.
• Proven DF45 ducted fan unit produces stable and powerful thrust.
• 3-servo specifications provide free control of the elevon and swing-wing's swept back angle.
• Brushless motor and fan combine in a high-efficiency one-piece fan unit that produces 270g of thrust (fan unit thrust).
• One-piece shroud's brushless motor generates 50,000 RPM of pulling power.
• 11.1V-700 - 910mAh Li-Po (Lithium Polymer) battery provides the power for potent jet flight. (No.ORI60037 recommended)
• Removable canopy enables easy access for changing battery and linkages or other maintenance.
• Balsa rib tail wing is pre-covered in film. Simply fix to the fuselage to complete. 4-channel specifications for elevon, throttle and swing-wing control.

Required for operation:

• R/C System / 4-channel, 3 micro servo (1 for swing wing)
• Controller / ESC Sky victory BLS25
• Battery / 11.1V-700 - 910mAh Lithium Polymer battery
• Charger for Li-Po battery
• Balancer for Li-Po battery
• Batteries for R/C system

Technical Data:

• Length 625mm
• Width Swing Out 710mm, Swing In 540mm
• Weight 420～450g(approx.)
• Wing Area 10.5dm2
• Thrust 270g (approx.) (when using 11.1V Li-Po battery / fan unit)
